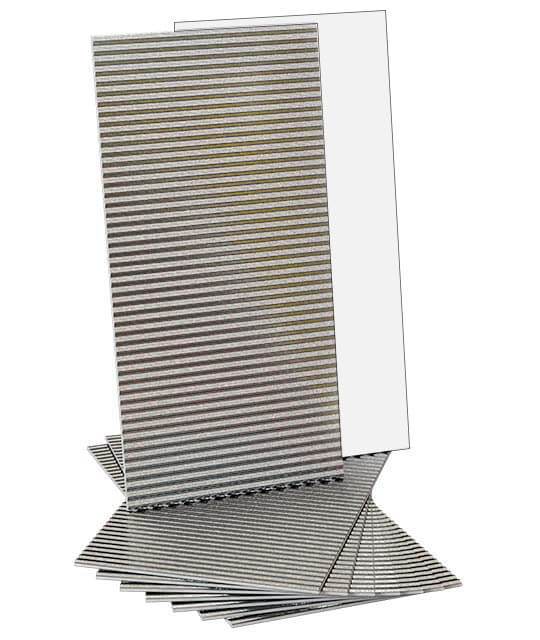

Dripwave Plus EPS Panel
The next generation of the DripWave insulation panel is the new DripWave Plus. The new panel shares the same patented wavy-back design as our original DripWave panel but has additional features: a metallic radient barrier on the wavy side and a clear laminated layer on the flat side.
DripWave Plus Specifications
- DripWave Plus EPS Type II board, compliant with ASTM C578
- Nominal density of 1.5 lb/ft3
- Minimum compressive strength of 15 psi
- EPS board thickness: 1”
DripWave Plus Panel Sizes:
- 4' x 8'
- 2' x 8'
DripWave Plus R-Value Performance:
The following stable R-values per inch, tested according to ASTM C518 or ASTM C177:
- 5.75 at 25°F
- 5.56 at 40°F
- 5.34 at 75°F
